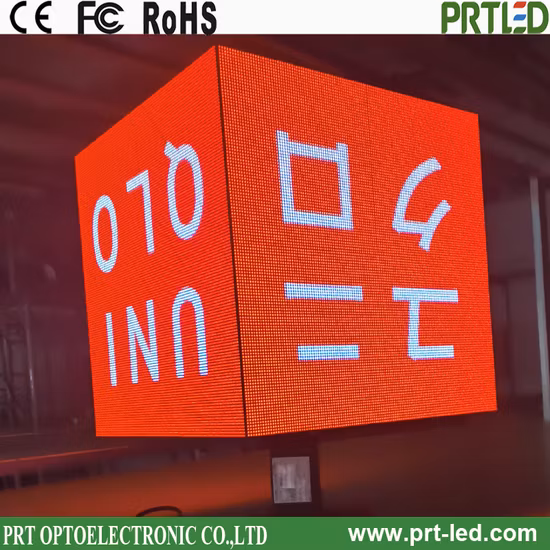

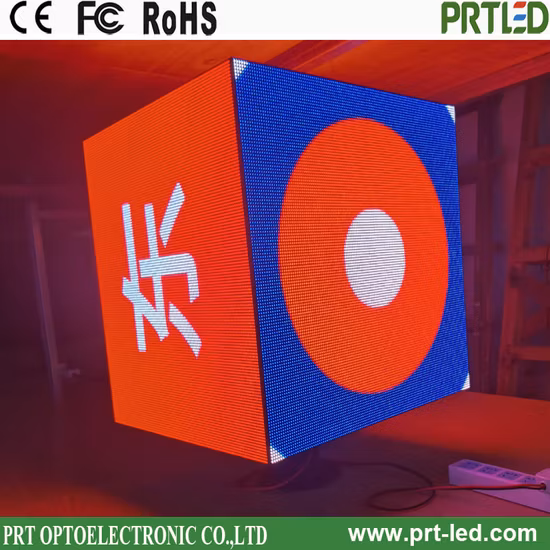

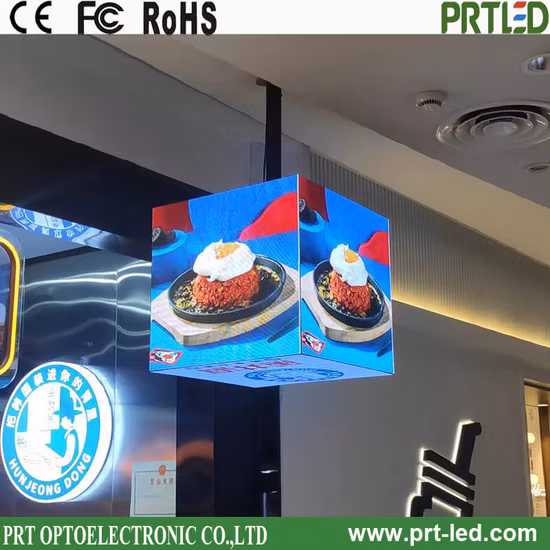

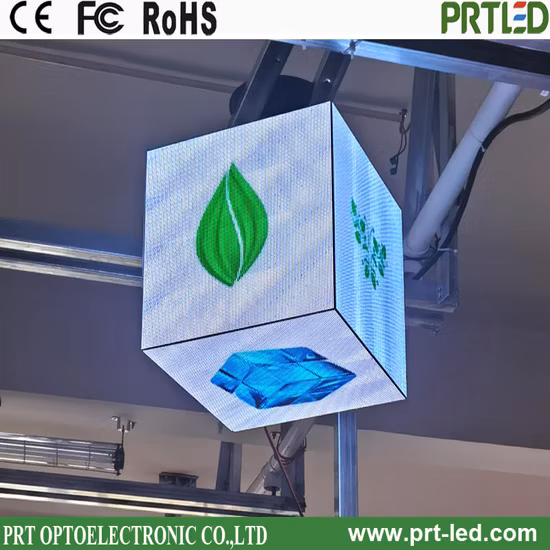

Full Color Indoor LED Cubic Screen Advertising Cube LED Display

Basic Info.

Model NO.	P3, P4, P5, P6,
Pixel Configuration	1R,1G,1B
Pixel Density	62500
Scanning Mode	1/16 Scan
System Operating Platform	WIN XP
Display Type	LED Video Display
Application	Stage Performance, Advertising
IP Rating	IP43
Certification	CE, RoHS, CCC, ETL
LEDs	Natiosntsars
Refresh Rate	1920Hz/S
Brightness	2000-4000nits/Sqm
Feature	5 Sides Display Showing
Transport Package	Wooden Box and Flight Case
Specification	1024mmx 1024mm
Trademark	SHENZNEN MYLED
Origin	China
HS Code	8528591090
Production Capacity	50000 Sqm Per Year

Packaging & Delivery

Package Size 120.00cm * 110.00cm * 35.00cm Package Gross Weight 45.000kg

Product Description

Cabinet picture

Our services

1. Provides all LED display relative solutions, like installation drawing etc.

2. Have free training about how to use and maintain LED displays with our professional engineer.

3. Provide free spare parts for future urgent need.

4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 24 hours and 365 days open for any inquiry.

6. All other service request will be considered in MYLED, please contact with sales in details.
Specification:

Pixel Pitch	P4
Pixel Density	62500dots
Module size	256mmx128mm
Cabinet size	1024mm x1024mm
Driving Way	1/16
Brightness	800nits/sqm
Refresh rate	3840Hz/s
Cabinet design	Cubic, 5 sides display showing
Average Power	350W/sqm
Packing way	Wooden case

High Durability and Stability
MYLED fixed advertising series LED video display was developed specifically for commercial billboards and outdoor digital advertising markets.Designed for fixed outdoor installations, Fixed LED video panels are robust and durable, high qualified to withstand any harsh environment factors such as constant vibrations, direct UV rays, varying temperatures and severe weather conditions. The Fixed LED display systems are suitable for 24/7 operation.
Front / Rear Access
MYLED Fixed LED video display supports front or rear service access for specific installation. The fully front installation and maintenance panel design easier your installation procedures and much convenient to maintain. It is the perfect choice for against the wall installation or any other environment where requires no rear maintenance space.
High brightness 8000nits
MYLED fixed LED video display equipped with high brightness LEDs (DIP or SMD for options) to make sure the screen displaying vivid and clear image even in direct sunlight. The wide viewing angle catches more eyes on the screen and deliver brilliant visual enjoyment to the passing-bys, greatly maximize the commercial value.
Remote control and monitor
The advanced reporting system allows clients to remotely monitor the performance of the entire LED display and individual panels live from any destination. It detects any inconsistencies and failures and feedback the results in real time when they occur.

Item	outdoor fix installation LED display specifications
Pixel pitch	P2.5	P3	P4	P5	P6	P8	P10
Size of module	160mm x 160mm	192mm x 192mm	320mm X 160mm	320mm x 160mm	192mm x 192mm	320mm x 160mm	320mm x 160mm
Power supply	Meanwell or G-energy 5V 60A CE/ UL
IC	MBI5124 / ICN6363/16380/16306
Density of pixel	160000dots/m2	111110dots/m2	147465dots/m2	112896dots/m2	65536dots/m2	43222dots/m2	28224dots//m2
Constitution	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Encapsulation	SMD1415	SMD1921	SMD1921	SMD2525	SMD3535	SMD3535	SMD3535
Module resolution	64 x 64	64 x 64	80×40	64×32	32×32	40×20	32×16
Module power cosumption	20W average	20w average	25W average	25W average	20W average	20W average	25W average
The optimum viewing distance	3m	4m	5m	6m	7m	10m	13m
Viewing angle(Horizontal)	160°	160°	160°	160°	160°	160°	160°
Average power cosumption	450w/m2	450w/m2	400W/m2	400W/m2	350W/m2	300W/m2	300W/m2
Size of cabinet	640mm x 640mm	768mm x 768mm	768mm x 768mm	960mm x 960mm	960mm x 960mm	960mm x 960mm	960mm x 960mm
Resolution of cabinet	256 x 256	256 x 256	192 x 192	192 x 192	160 x 160	120 x 120	96 x 96
Cabinet weight	16kg	20kg	25kg	39kg	39kg	39kg	39kg
Driving method	1/16 scan	1/16 scan	1/10 scan	1/8 scan	1/8 scan	1/5 scan	1/2 scan
Control method	WiFi/4G/USB/LAN	WiFi/4G/USB/LAN	WiFi/4G/USB/LAN	WiFi/4G/USB/LAN	WiFi/4G/USB/LAN	WiFi/4G/USB/LAN	WiFi/4G/USB/LAN
Refresh rate	1920 to 3840Hz/s	1920 to 3840Hz/s	1920 to 3840Hz/s	1920 to 3840Hz/s	1920 to 3840Hz/s	1920 to 3840Hz/s	1920 to 3840Hz/s
Luminance of white balance	4500nits	4500nits	5000nits	5000nits	5500nits	5500nits	5500nits
Working temperature	-10ºC--50ºC(-30ºC--50ºCoptional)
Working voltage	220±10% or 110±10%
Grey Scale/Color	Displaying colors≥16.7M(synchronized)
Brightness adjustment	256 levels of each color(R,G,B) can be adjusted manually, and 8 levels of each color can be adjusted automatically
Input signal	RF, S-VIDEO, RGB, RGBHV, YUV, YC and COMPOSITION, etc
Control system	PCTV non-linear editting card+DVI display card+main controller card+optic fibre transmission(Optional)
